Racking kit KMS0027

KMS0027

Width:
1620
Depth:
324
Height:
918
NetWeight:
52.90

All dimensions are in mm and all weights in kg.

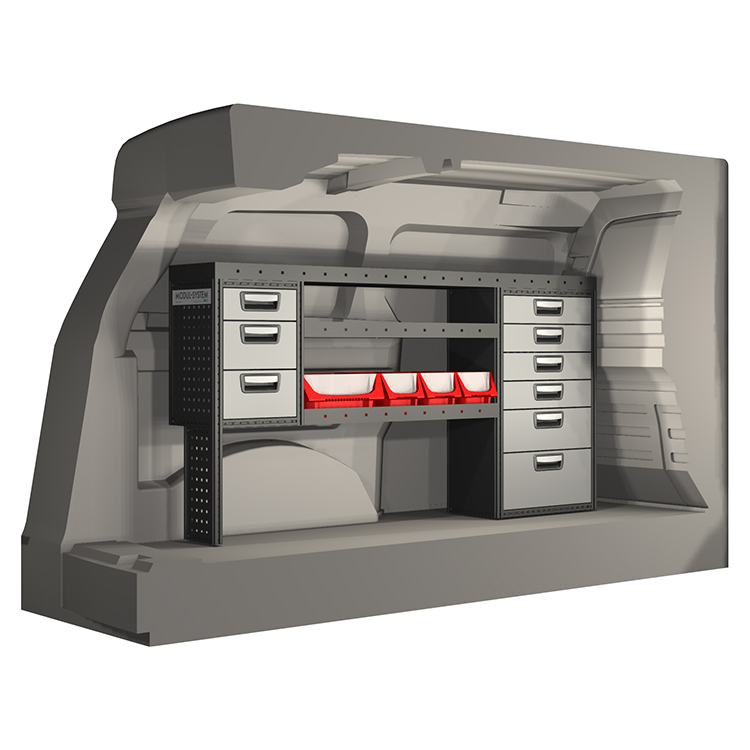

The racking has been specially designed to ensure the optimum fit to the vehicle, as well as the best possible functionality and safety. It has been developed for professional use, is flexible and is intended for service jobs in various types of business. All shelves are equipped with rubber mats, and all drawers with foam plastic liners. Assembly material is included.

Please note that the floor installation brackets included are designed to fit the Modul-Floor, and the wall brackets are installed using rivets/screws/glue. Cut-outs in the plastic covers might be required.

Modul-Floor and glue are ordered separately.

Estimated assembly time:
3,0 h

For details on how to place an order, please see below or contact our team for more information.

  • Total: 2
  • Floor bracket kit ID. Buzz, left side - long kit

  • Floor bracket kit ID. Buzz, right side - long kit

  • Total: 2
  • 1
  • 2
  • 3
  • Total: 27
  • Universal bracket UV-1

  • Universal bracket UV-2

  • Universal bracket UV-32

  • Support bracket

  • Connecting profile

  • Modul-Box 162x324

  • Modul-Box Window 162

  • Modul-Box 324x324

  • Modul-Box Window 324

  • Modul-Box Handle 324

  • Set of Nuts and Bolts Micro

  • Rubber mat for shelf 810x324

  • 1
  • 2
  • 3
  • Total: 27
