Floor XL Master 10-/Interstar 22- L4 - RWD - RD

F3304011000

Width:
1760
Depth:
4383
Height:
13.8
NetWeight:
47.81

All dimensions are in mm and all weights in kg.

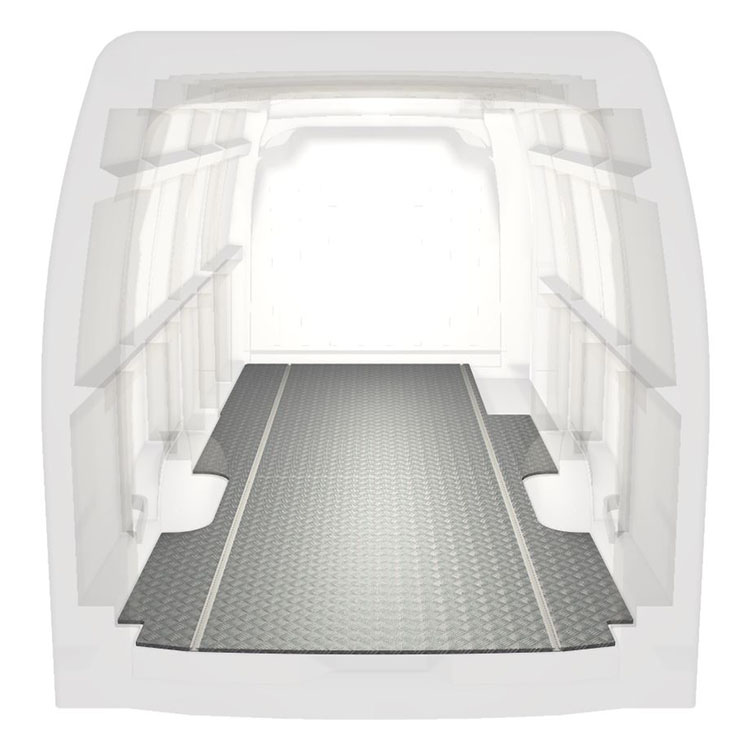

Lightweight and robust extra long floor for a Renault Master / Opel Movano / Nissan NV400 with anti-slip aluminum tread plate and cargo rails (longitudinal) for quick and safe installation of racking systems and other accessories.

The extra-long floor modules furthermore facilitates the installation.

The floor installation requires no drilling and is fitted using highly adhesive glue, which results in a stronger installation than nuts and bolts, while protecting the residual value of the vehicle.

Accessories such as lashing eyelets, lashing hooks and cargo bars are easily mounted directly onto the floor rails.

Glue kit and edging strips are supplied separately.

Load capacity: 1000 kg/m2

For details on how to place an order, please see below or contact our team for more information.

  • Total: 7
  • Rubber strap (running meter)

  • Lashing HL-2000S

  • Lashing HL-4500S

  • Lashing eyelet for M8 rail

  • Lashing hook for M8 rail

  • Edging strip Master 10-/Interstar 22- L2-L4 - RWD - RD

  • Glue kit floor - gun - L4 (Products)

  • Total: 7
  • Total: 2
  • SPP Floor XL Mas 10-/Int 22- L4 - RWD - RD

  • Modul-Floor XL 1200x2548

  • Total: 2

Monteringsinstruktioner

Technical specifications
