11800-03
- Width:
- 250
- Depth:
- 2198
- Height:
- 260
- NetWeight:
- 8.30
All dimensions are in mm and all weights in kg.
For details on how to place an order, please see below or contact our team for more information.

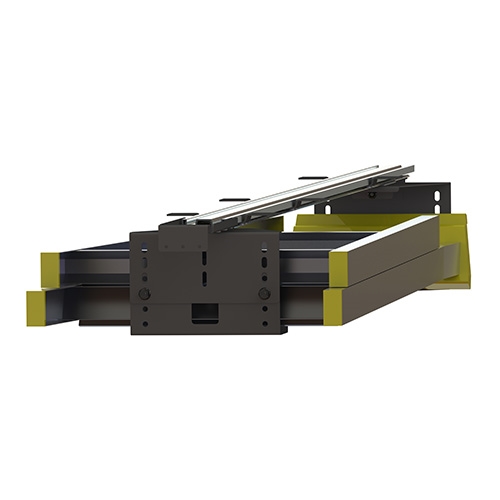

Internal ladder holder
Art. nr.
11800-03
Product description
Internal ladder holder for safe and efficient storage of a ladder in the vehicle's cargo area.
The holder is equipped with a gas strut to facilitate loading. The ladder is hooked onto the front bracket, pushed back as far as possible, hooked onto the rear bracket and then released. The design will keep the ladder secured while the vehicle is being driven.
If required, the rear bracket can be turned 180 degrees. When used this way, the ladder is secured with a rubber strap.
To fit different vehicles and ladders, the holder is adjustable in both length and height.
Load capacity: 15 kg
Material: powder-coated steel and aluminum
Color: graphite grey
