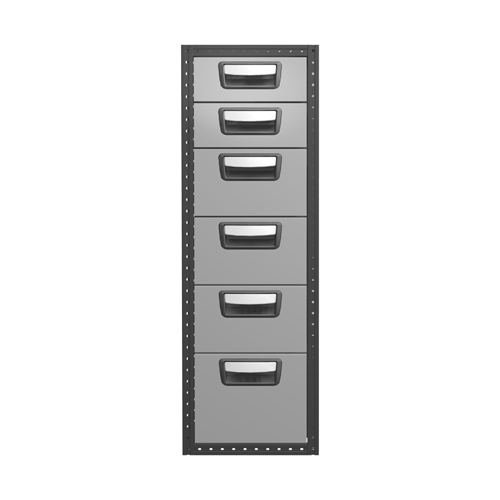

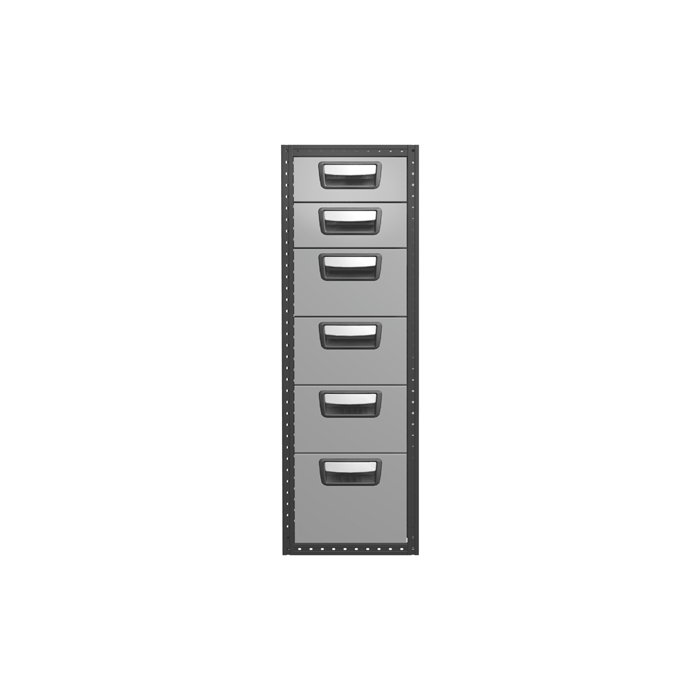

Drawer unit 324x486x972

34231-03

Width:
324
Depth:
486
Height:
972
NetWeight:
22.40

All dimensions are in mm and all weights in kg.

Each drawer is fitted with ball bearing runners as standard, and has a load capacity of 30 kg with a maximum of 100 kg per drawer unit. The drawers are fully extendable and equipped with stoppers. For maximum utility, the drawer unit can be equipped with accessories such as foam plastic liners, plastic inserts and dividers. To help optimize the weight, cover panels and tool boards are optional.

For details on how to place an order, please see below or contact our team for more information.

  • Total: 9
  • Plastic foam insert 324x486

  • Wheel set Ø100 mm, 4 pcs

  • Modul-Lock (cam lock), high

  • Modul-Lock (cam lock), low

  • Drawer insert kit 324x486x108

  • Drawer insert kit 324x486x162/216

  • Cover panel 486x972

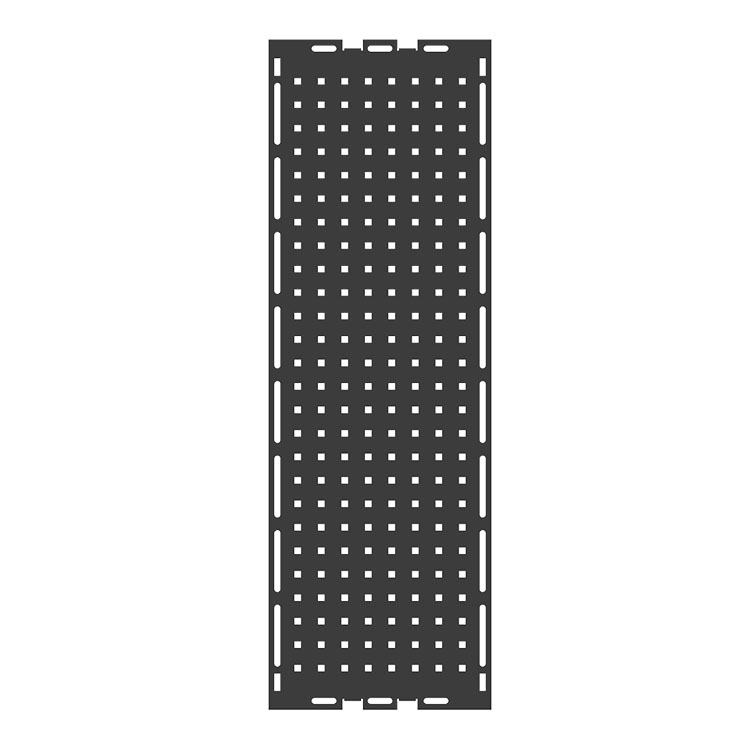

  • Tool board 486x972

  • Rear cover panel 324x972

  • Total: 9
  • Total: 7
  • Drawer 324x486x108

  • Drawer 324x486x162

  • Drawer 324x486x216

  • Drawer front 324x108

  • Drawer front 324x162

  • Drawer front 324x216

  • Ball bearing runners 486, 1 pair (for aluminum drawers)

  • Total: 7
