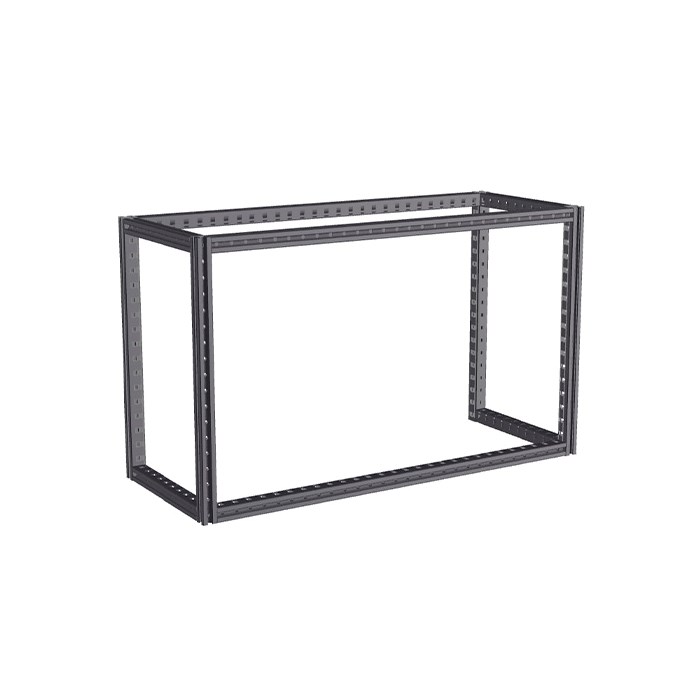

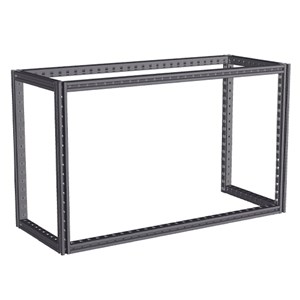

Wheel arch frame 810x324x486

59561-03

Width:
810
Depth:
324
Height:
486
NetWeight:
4.80

All dimensions are in mm and all weights in kg.

The frame can be placed over a wheel arch, providing a very secure foundation for drawer units and/or lockers with a load capacity of up to 200 kg. The clearance is 351/459 mm. Add cover panels to the frame (kit for horizontal locker), a drop-down door, or an EGS door that opens vertically upwards. A bench top can be fitted to create an additional work surface.

Material: powder-coated ultra-high strength steel.
Color: graphite grey.

For details on how to place an order, please see below or contact our team for more information.

  • Total: 6
  • Fixed shelf for locker 810x324

  • Bench top for wheel arch 810

  • Drop down door 810x486

  • Kit for horizontal locker 810x324x486

  • Lashing eyelet for T-track M6

  • Load stop

  • Total: 6
